What Is Inter-VLAN Routing?

VLANs are used to segment Layer 2 networks. Hosts from one VLAN cannot communicate with hosts in another VLAN unless a router or a Layer 3 switch provides routing services (inter-VLAN routing on a Layer 3 switch).

Inter-VLAN routing is the technology for communicating network traffic from one VLAN to another VLAN.

There are two well-known inter-VLAN routing options:

  • Router-on-a-Stick VLAN Routing: This is a suitable solution for small- to medium-sized networks.
  • Switched Virtual Interfaces (SVIs): This is the most scalable solution for medium to large organizations, and this solution needs a Layer 3 switch.

Understanding The Need For VLANs

Before we discuss inter-VLAN routing configuration examples with commands, it’s important to understand some basics about switches' roles, limitations, and how they create the need for VLANs.

Before switches, hubs were the primary means for devices in a network to connect. However, hubs sent packets to all the connected ports, which was inefficient. Switches solved this issue.

A switch can identify the destination device or traffic based on MAC addresses. That way, the traffic only went to the intended destination, reducing network congestion that hubs were notorious for.

Still, switches posed one issue, which is broadcast traffic. While they send packets to the desired port, they send broadcast traffic to all ports. That creates broadcast traffic congestion on the network.

One possible solution to this problem is to use separate switches and divide the network. But that’s expensive, especially in large networks. So, VLANs were created as a practical and cost-effective solution for dealing with broadcast traffic.

VLANs are software-based or virtual LANs that segment the network, essentially allowing the same switch to create distinct broadcast domains.

It helps to equate VLANs to analogous radios on different channels to understand them better. The devices on the same VLAN can hear the broadcasts with their designated segment, much like friends communicating on the same radio channel.

The segmentation that VLAN offers helps to reduce broadcast congestion. More importantly, this is also good from a security perspective. Certain segments can be isolated and exist on separate VLANs entirely.

Thanks to their efficiency and better security proposition, VLANs are super common in enterprise networks today.

The Limitations Of VLAN

Ok, so VLAN successfully segments the network and eliminates broadcast congestion. But what if you need inter-VLAN communication? That can be tricky if they’re wholly separate.

You may consider putting a DHCP server for each VLAN. However, that’s not the most optimal solution.

What’s best is a solution where VLANs can communicate with each other while remaining separate. That’s where VLAN routing comes in.

Legacy Inter-VLAN Routing

Although this method is outdated and no longer used, we’re sharing it to showcase how much better router-on-a-stick VLAN routing is.

Early on, traditional VLAN routing used a router with multiple Ethernet interfaces. Every interface was connected to a switch port on a different VLAN. The router interface was the default gateway for the local hosts of the VLAN subnets.

While this method does the trick, it also poses serious limitations. For starters, routers have a limited number of physical interfaces. If there are many VLANs in the network, the interfaces on a router will likely be quickly consumed, requiring an additional router.

So, this legacy method had scalability issues, rendering it inefficient for large networks in enterprise settings.

Router-on-a-Stick Inter-VLAN Routing Method With a Cisco Router

The "router-on-a-stick" inter-VLAN routing technique needs only one physical interface to route traffic among multiple VLANs on a network. A router's physical interface is configured as an 802.1Q trunk and connected to the Layer 2 switch's trunk interface.

The router interface is configured using subinterfaces for passing multiple VLANs in one interface. The configured subinterfaces are software-based virtual interfaces, and each subinterface is associated with a single physical Ethernet interface. Each sub-interface is configured for different subnets that correspond to their VLAN assignment, which facilitates logical routing.

When VLAN-tagged traffic enters the router interface, the traffic is forwarded to the VLAN subinterface according to the VLAN tag ID. After a routing decision is performed based on the destination address, the router determines the egress interface for the traffic.

NOTE: The router-on-a-stick inter-VLAN method does not scale beyond 50 VLANs.

Router-on-a-Stick Inter-VLAN Routing Configuration Example

This section describes how to configure the router-on-a-stick inter-VLAN routing method. You can see in the image below that the router is connected with a switch using a single interface, and can pass multiple VLANs using that interface via a router-on-a-stick inter-VLAN routing configuration.

The router GigabitEthernet 0/0/0 interface is connected to the Layer 2 switch Ethernet 1/1 port. The Ethernet 1/1 is a trunk link that is required to forward traffic within and between VLANs.

10-1

To route between VLANs, the Router GigabitEthernet 0/0/0 interface is logically divided into two subinterfaces, as shown in the table below. The table also shows the two VLANs that will be configured on the switch.

Subinterface VLAN IP Address

G0/0/0.100

100

10.1.100.1/24

G0/0/0.200

200

10.1.200.1/24



Assume that the Router and Switch have basic configurations. Currently, PC1 and PC2 cannot ping each other because they are on different networks.

To enable the PCs to communicate, we need to configure VLANs and trunking in the switch level, and the router must be configured for inter-VLAN routing.

VLAN and Trunking Configuration in Switch

Complete the following steps to configure Switch with VLANs and trunking:

VLAN Configuration

  • Step 1: VLANs Creation: First, the VLANs are created and named, as shown in the below configuration.

VLAN Configuration commands

  • Step 2: Configure Access Ports: Next, port Eth1/2 connecting to PC1 is configured as an access port in VLAN 100, as shown below. Assume PC1 has been configured with the correct IP address, netmask, and default gateway1.100.1.

Access Port Configuration

Access Port Configuration commands

  • Step 3: Trunking Port Configuration: Configure the port Eth1/1 as a trunk port like the below configuration.

Trunking Port Configuration

Trunking-Port-Configuration

Router Subinterface Configuration

For each VLAN, you need to create a subinterface in the router-on-a-stick method. A subinterface can be created using the interface_id.subinterface_id format in the global configuration mode. The subinterface syntax is the physical interface followed by a period and a subinterface number. Although not required, it is common to match the subinterface number with the VLAN number.

After creating the subinterface, enable the interface with the "no shutdown" command in the interface configuration mode. All the subinterfaces are disabled if the physical interface is disabled.

In the below configuration, the Router G0/0/0 subinterfaces are configured for VLANs 100 and 200.

Subinterface Configuration commands

Verify Connectivity Between PC1 and PC2

After the switch trunk and the router subinterface configurations, the router-on-a-stick configuration is complete. The configuration can be verified from the PC, router, and switch.

From PC1, verify connectivity to a host in another VLAN using the ping command.

Windows PC IP Address

Windows PC IP Address command and response

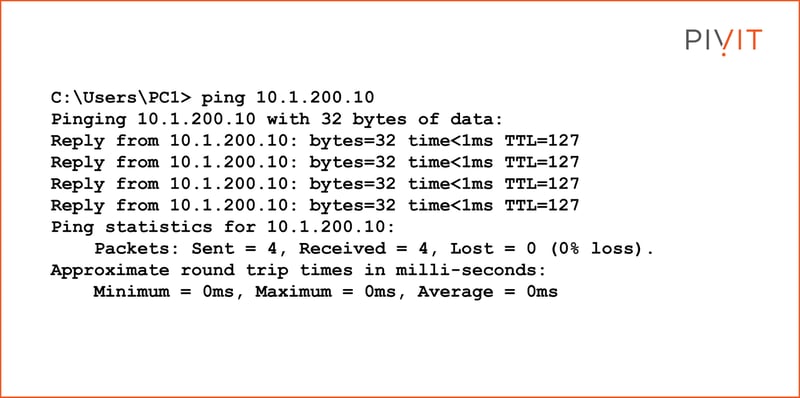

The output confirms the IPv4 address and default gateway of PC1. Next, use ping to verify connectivity with PC2, as shown in the below output. The ping reply confirms that inter-VLAN routing is working.

Verify-Inter-VLAN-Routing-by-Pinging-from-PC1

Router-on-a-Stick Inter-VLAN Routing Verification

Use the below show commands to verify and troubleshoot the router-on-a-stick configuration.

  • Show ip route
  • Show ip interface brief
  • Show interfaces

As shown in the below output, verify that the subinterfaces appear in the router's routing table by using the "show ip route" command. Notice that there are two connected routes (C) and their respective exit interfaces for each routable VLAN. The output confirms that the subnets, VLANs, and subinterfaces are active.

Routing Table Verification commands and response

Another useful router command is to show the ip interface brief, as shown below. The output confirms that the subinterfaces have the correct IPv4 address configured and that they are operational.

Verify Subinterface IP Addresses and Status commands and response

Subinterfaces can be verified using the show interfaces subinterface-command, as shown in the below output.

Details of the Subinterface command and response
